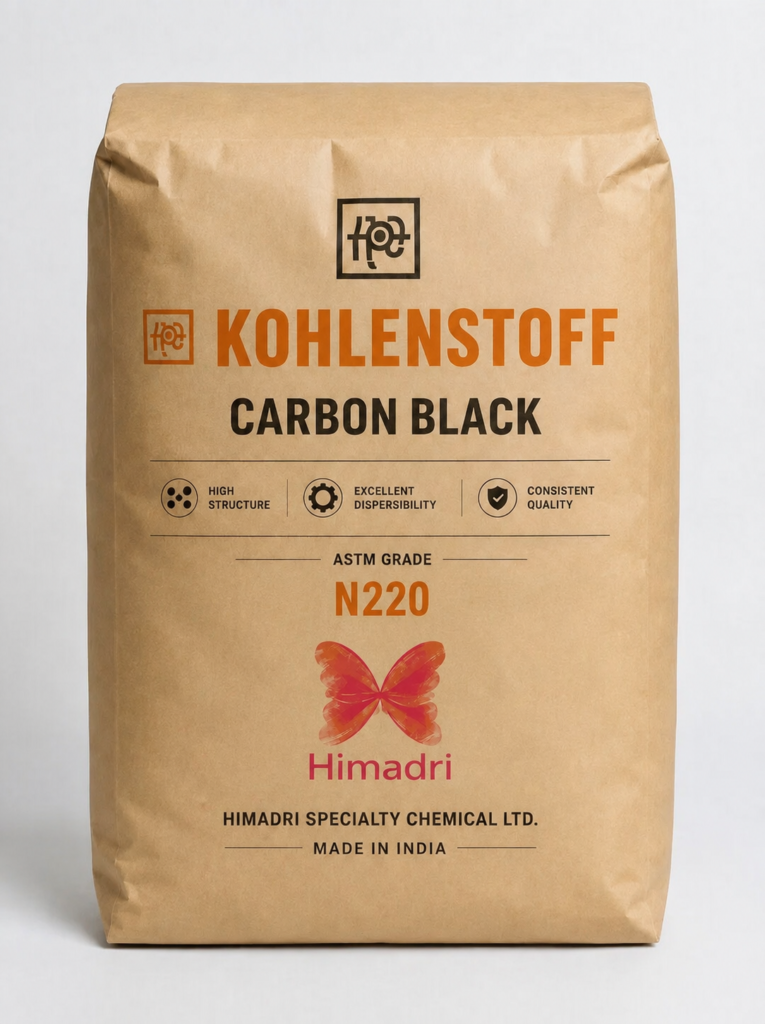

Carbon Black ASTM Grade N220 is an intermediate super abrasion furnace (ISAF) black that offers high tensile strength, superior tear resistance, and excellent wear resistance in rubber compounds. Featuring a fine particle size and high surface area, it provides about 10% to 20% higher abrasion resistance compared to standard N330 grade carbon black. It is primarily utilized in passenger and commercial vehicle tire treads, heavy-duty conveyor belts, and high-strength industrial rubber goods.
Carbon Black ASTM Grade N220 belongs to the N200 series of furnace blacks characterized by fine particle diameter (~20–25 nm) and high specific surface area. Under ASTM D1765 classification, the "N" indicates a normal curing rate, while the "2" signifies its particle size group.
Because of its high reinforcement capability, N220 significantly enhances the mechanical durability, hardness, and road-traction behavior of vulcanized rubber compounds.
High Reinforcement & Tensile Strength: Delivers exceptional mechanical strength and chip-and-cut resistance to rubber matrices.
Superior Abrasion Resistance: Outperforms general-purpose furnace grades like N330 and N550 in wear resistance under heavy friction.
Electrical Conductivity: Possesses moderate electrical conductivity, aiding electrostatic dissipation in rubber products.
Processing Behavior: Generates higher heat during dynamic stress and increases compound viscosity/hardness compared to coarser grades.
| Property / Parameter | Typical Value | Unit | Test Standard |
| Appearance | Black Granular / Pellets | — | Visual |
| Iodine Adsorption Number | $121 \pm 5$ | g/kg | ASTM D1510 |
| Nitrogen Surface Area (NSA) | $114 \pm 5$ | $\text{m}^2/\text{g}$ | ASTM D6556 / D3037 |
| STSA (Statistical Thickness Surface Area) | $106 \pm 5$ | $\text{m}^2/\text{g}$ | ASTM D6556 |
| Oil Absorption Number (OAN / DBP) | $114 \pm 5$ | $\text{cm}^3/100\text{g}$ | ASTM D2414 |
| Compressed Sample OAN (COAN) | $98 \pm 5$ | $\text{cm}^3/100\text{g}$ | ASTM D3493 |
| Tinting Strength | $116 \pm 5$ | % | ASTM D3265 |
| Pour Density | $355 \pm 20$ | $\text{kg}/\text{m}^3$ | ASTM D1513 |
| Heating Loss (Moisture) | $\le 1.5$ | % | ASTM D1509 |
| Ash Content | $\le 0.5$ | % | ASTM D1506 |
| 45 $\mu\text{m}$ Sieve Residue | $\le 0.1$ | % | ASTM D1514 |
Tire Manufacturing: Heavy-duty commercial truck tire treads, passenger car tire treads, off-the-road (OTR) tire components.
Conveyor Belting & Hose Covers: High-strength industrial belts and hoses requiring high resistance to abrasion, tearing, and cutting.
Mechanical Rubber Goods (MRG): Molded or extruded rubber parts subjected to aggressive dynamic stress.
Plastics & Masterbatches: Used as a pigment and UV-stabilizing additive in specialty polymer compounds.
